VACUUM - MEDICAL AIR CENTRAL STATION


     Vacuum Central Station

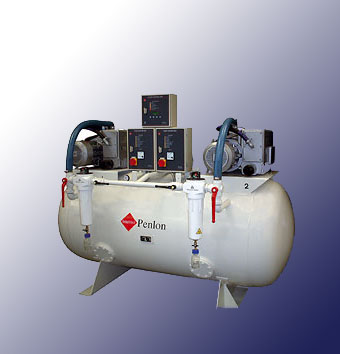

  VACUUM CENTRAL STATION

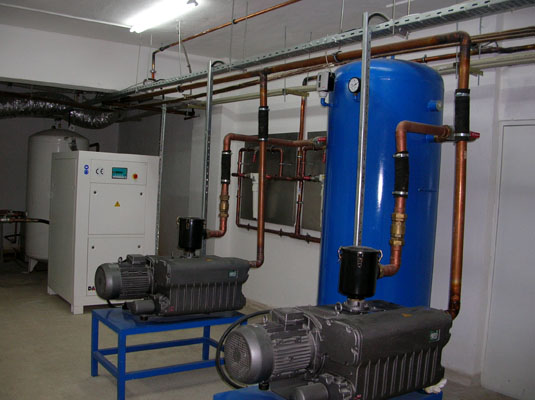

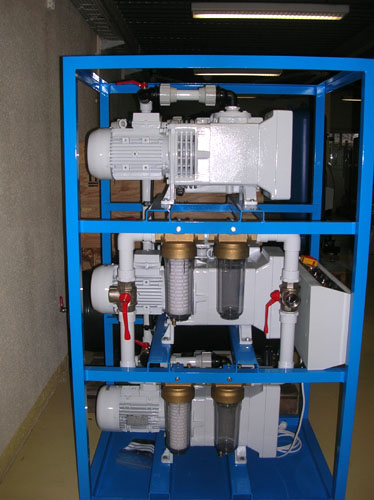

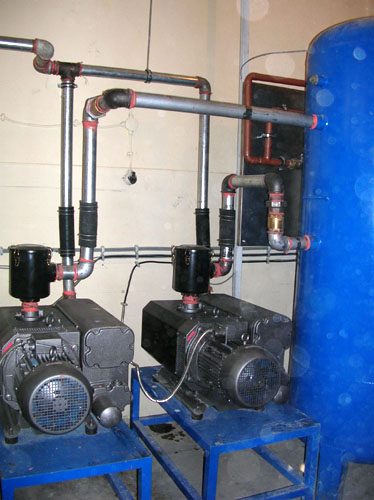

1- Vacuum System Rotary Vane Elektropump Group
     2x25 - 2x45 - 2x65 - 2x100 - 2x180 - 2x280 m³/h
     On 300-500-1000 Lt. Tank

2- Electrical Control Panel Board

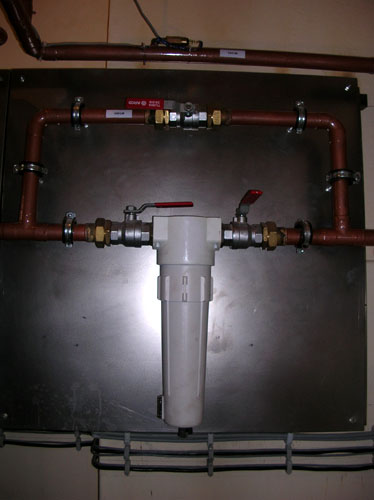

3- Bactericide Filter Unit  25-45-65-100-180-280 m³/h

  COMPRESSED AIR CENTRAL STATION

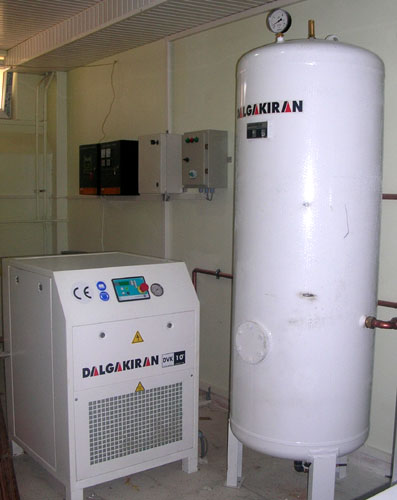

1- Screw Rotary Compressors Group 35-57-84-135-174-238-280 m³/h
    Alternative : 1- Air Piston Compressors Group 15-30-51-66-99 m³/h

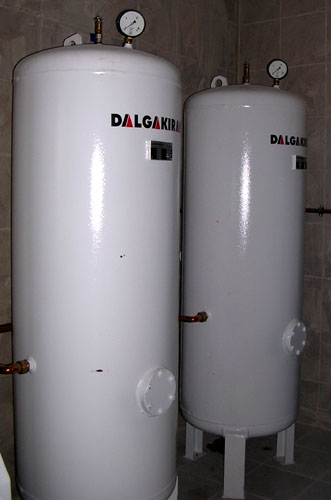

2- Reserve Tanký - 300-500-1000 Lt.
3- Elektric Control Panel Board
4- Automatic Condensate Drain Valve

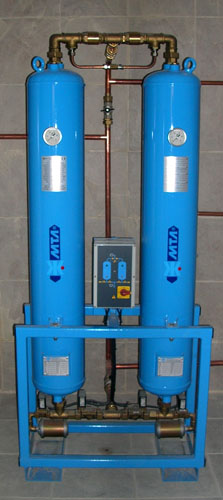

5- Air Drier 51-66-108-138-186-258-312 m³/h

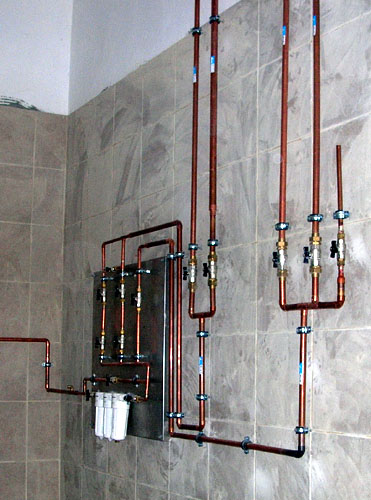

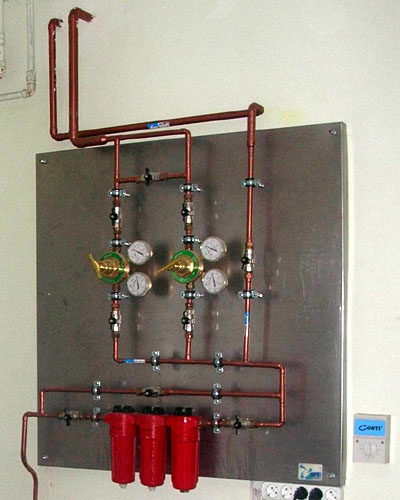

6- Filter Chain and Pressure Reducer 100-150-360 m³/h

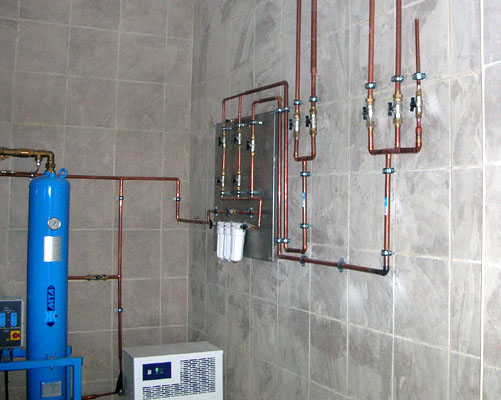

      Compressed Air Central Group

  EMERGENCY COMPRESSED AIR CENTRAL STATION

1- Emergency Contrl and Reducing Panel Board 23-35-50-75-100 m³/h
2- Cylinder Ramp With Non-Return Vlve 1-2-3-4-5 Seats
3- Profile With Separator 1-2-3-4-5 Seats
4- Pigtails Connecting Ramps to Cylinders and Panel Board

5- Over Pres. Safety Valve and Emergency Outlet Unit
6- High Pressure Evacuation Valve

GALLERY

13 piece photo / click here too see enlarge »
